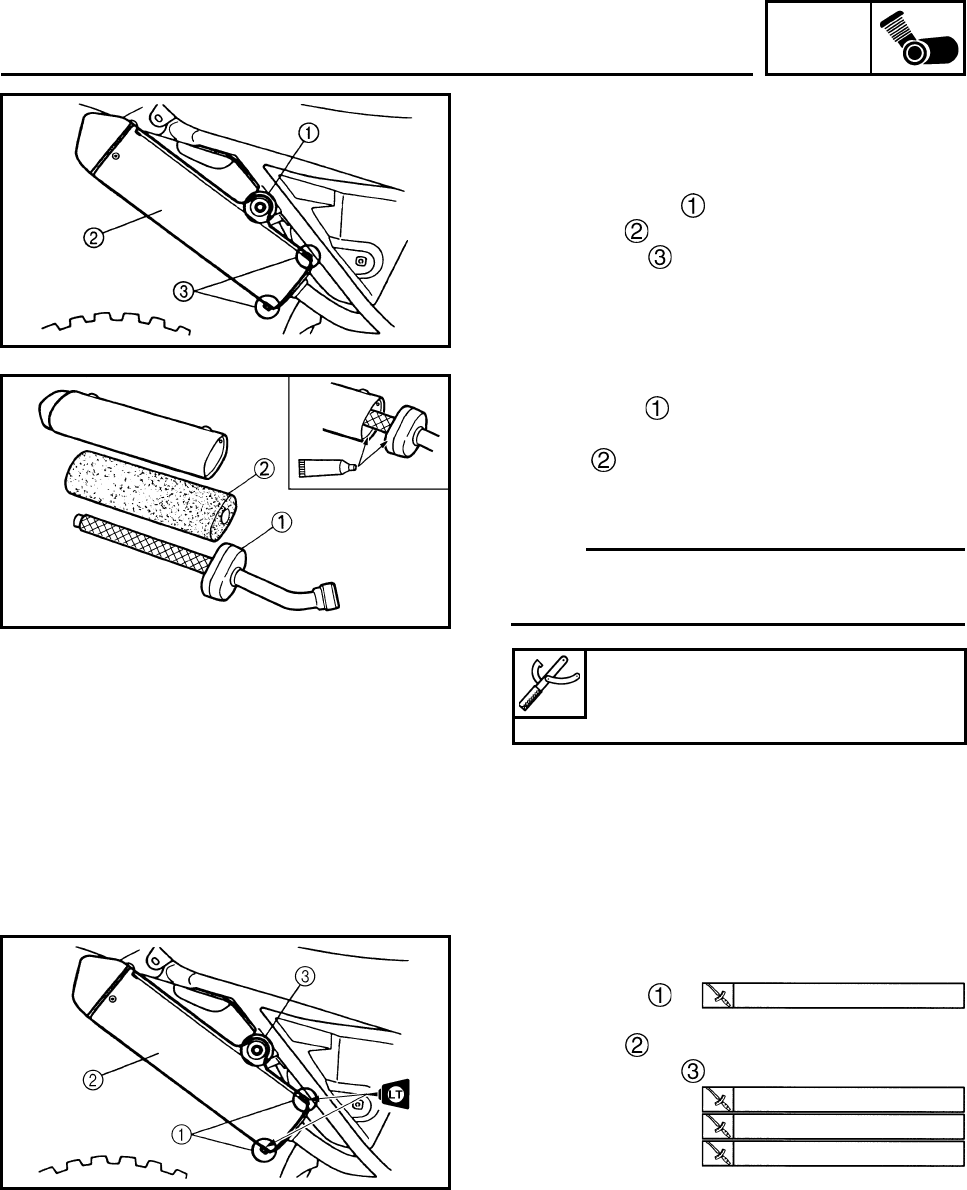

SILENCER FIBER REPLACEMENT
1. Remove:
• seat
• right side cover
• bolt (silencer)
• silencer
• bolt (fiber)
• washer
2. Remove:
• inner pipe
3. Replace:
• fiber
4. Install:
• inner pipe
N
O
TE:N
O
TE:
Fully apply Yamaha bond No. 1215 (Three
bond No. 1215
®
) or equivalent as shown.
5. Install:
• washer
• bolt (fiber)
LOCTITE
®
• silencer
• bolt (silencer)
• right side cover
• seat
Yamaha bond No.1215
(Three Bond No.1215
®
)
90890-85505
12 Nm (1.2 m•kg, 8.7 ft•lb)
12 Nm (1.2 m•kg, 8.7 ft•lb)
7 Nm (0.7 m•kg, 5.1 ft•lb)
7 Nm (0.7 m•kg, 5.1 ft•lb)
