ENG
5-2

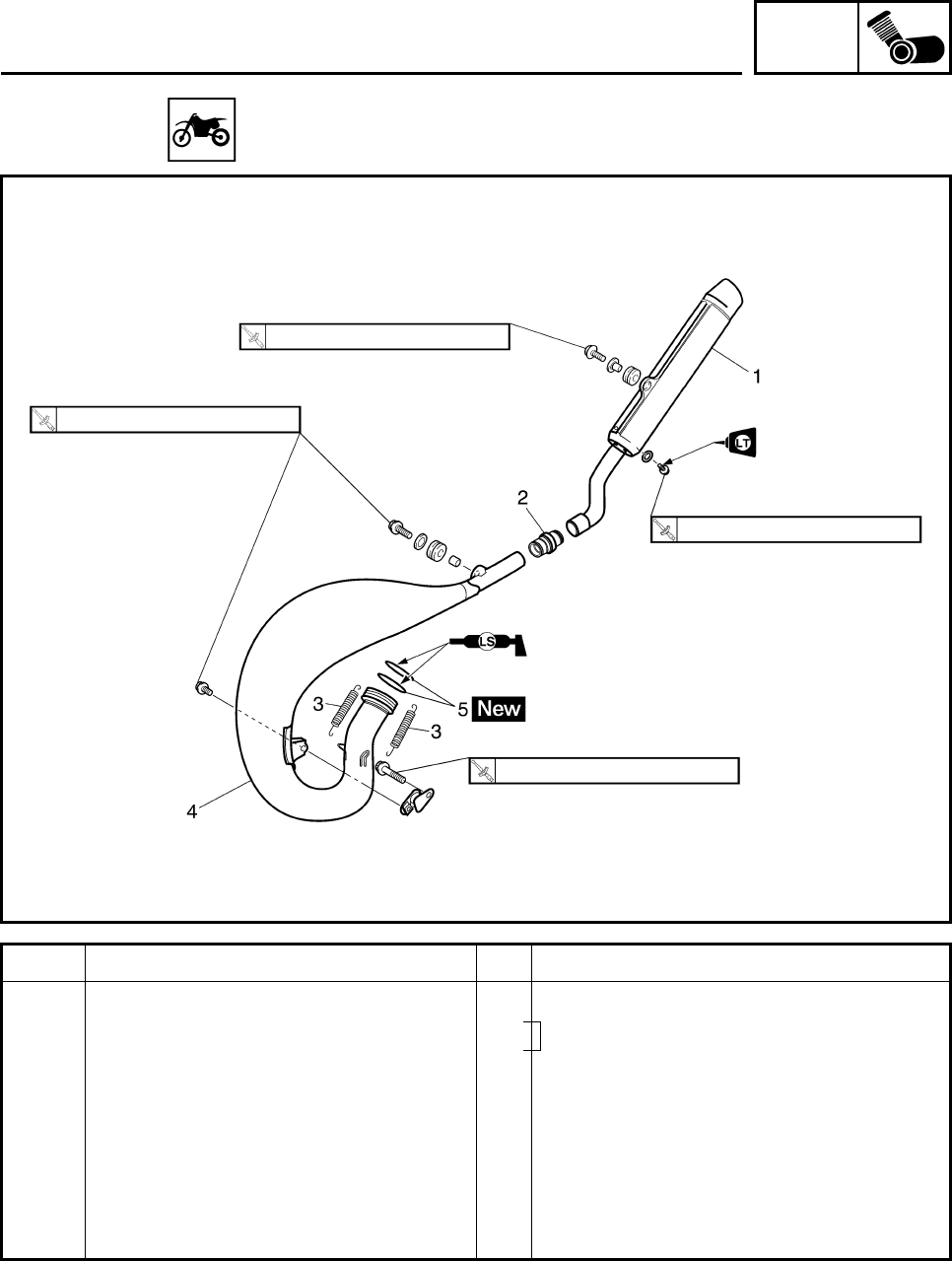

EXHAUST PIPE
Order Job / Part Q’ty Remarks
Removing the exhaust pipe Remove the parts in the order listed.
Seat
Right side cover
1 Silencer 1
2 Exhaust pipe joint 1
3 Exhaust pipe spring 2
4 Exhaust pipe 1
5 Exhaust pipe gasket 2
For installation, reverse the removal
procedure.
12 Nm (1.2 m•kg, 8.7 ft•lb)
12 Nm (1.2 m•kg, 8.7 ft•lb)
12 Nm (1.2 m•kg, 8.7 ft•lb)
12 Nm (1.2 m•kg, 8.7 ft•lb)
ENGINE
Refer to “SEAT, SIDE COVERS AND
FUEL TANK” in chapter 3.
